Views: 0 Author: Site Editor Publish Time: 2025-05-27 Origin: Site
In the realm of electrical engineering and everyday wiring tasks, Electrical Tape stands as an indispensable tool. It serves not only as a means of insulating and protecting conductive materials but also plays a crucial role in ensuring safety and efficiency across a myriad of applications. Understanding the rules and best practices for using electrical tape is paramount for both professionals and DIY enthusiasts. This comprehensive guide delves deep into the intricacies of electrical tape—its types, applications, standards, and the critical rules governing its use. By exploring these facets, we aim to provide valuable insights that enhance your knowledge and proficiency in electrical work.
Electrical tape, often referred to as insulating tape, is a pressure-sensitive tape used to insulate electrical wires and other materials that conduct electricity. Its primary function is to prevent electrical currents from accidentally passing to other wires and conductive surfaces, which could result in short circuits or electrical fires. The tape is designed to be durable, flexible, and resistant to various environmental factors, making it suitable for a wide range of applications.
The evolution of electrical tape mirrors the advancements in electrical engineering. Early insulating materials included cloth and rubber, which provided basic insulation but lacked durability and resistance to environmental factors. With the advent of synthetic materials in the 20th century, vinyl and PVC tapes emerged, offering enhanced insulating properties and flexibility. These innovations have paved the way for the diverse range of electrical tapes available today, each engineered to meet specific requirements and industry standards.
Understanding the material composition of electrical tape is essential for selecting the right type for a specific application. The most common materials used include:
Vinyl (PVC): Offers excellent insulation, flexibility, and resistance to moisture and abrasion. Suitable for general-purpose applications.
Rubber: Provides superior insulating properties, especially in high-voltage applications. Self-fusing rubber tapes create a seamless, watertight seal.
Cloth (Cambric): Made from cotton fabric coated with insulating varnish, offering high tensile strength and resistance to puncture.
Polyimide: Known for its thermal stability, it performs well in extreme temperatures and is used in aerospace and electronics industries.
Each material brings unique properties that make it suitable for specific electrical tasks, emphasizing the importance of selecting the appropriate tape based on the application's demands.
Electrical tapes are categorized based on their material composition and specialized functions. Below, we explore the various types and their optimal use cases.

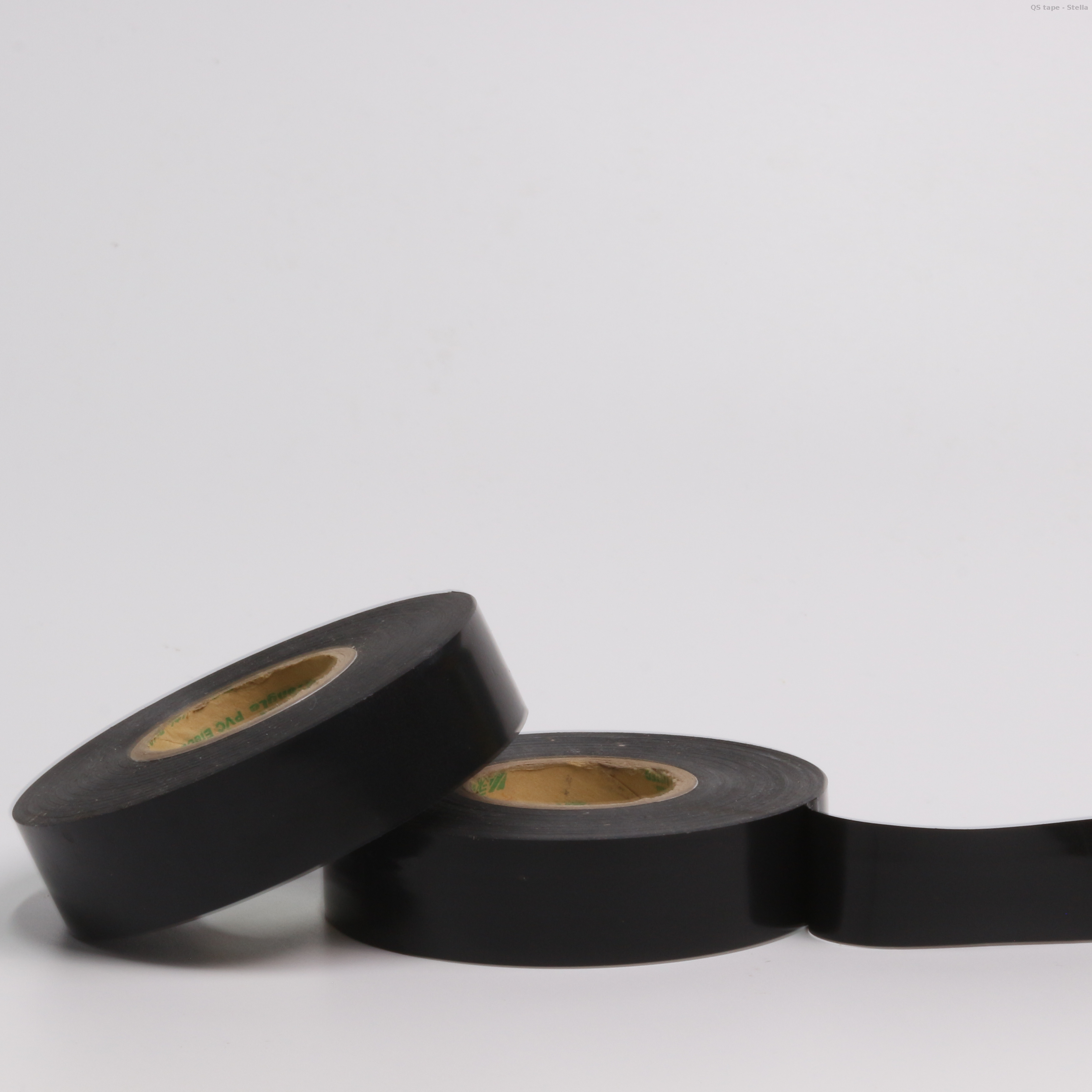

Vinyl electrical tape is the most prevalent type used for general-purpose insulation. Its elasticity allows it to wrap tightly around wires, providing excellent insulation and protection against moisture, UV rays, and abrasion. Vinyl tape is also resistant to acids, alkalis, and a variety of corrosive chemicals, making it suitable for both indoor and outdoor applications.
Key features include:
Temperature Resistance: Typically rated for temperatures up to 80°C (176°F), maintaining performance in varying climates.
Dielectric Strength: Provides reliable insulation for low to medium voltage applications.
Conformability: Easily conforms to irregular shapes and surfaces, ensuring a secure fit.
Rubber electrical tape is primarily used for splicing and terminating wires in high-voltage applications. Its self-fusing properties allow it to form a solid, void-free build-up that provides excellent moisture protection and insulation.
Advantages include:
High Voltage Insulation: Suitable for applications up to 69kV when used with appropriate primers and jackets.
Self-Fusing: Eliminates the need for additional adhesives, creating a cohesive insulating layer.
Temperature Stability: Maintains performance in a wide temperature range, often from -18°C to 80°C (0°F to 176°F).
Mastic tape combines a rubber-based adhesive with a mastic gum, providing a thick, protective layer ideal for sealing and insulating connections exposed to moisture and contaminants. It adheres well to irregular surfaces and is commonly used for cable repair and waterproofing applications.
Benefits include:
Superior Moisture Sealing: Effectively prevents water ingress, protecting against corrosion.
High Conformability: Easily molds to complex shapes and surfaces.
Broad Compatibility: Adheres to various substrates, including metals, rubbers, and plastics.
Varnished cambric tape is made from straight-cut cotton cloth saturated with electrical insulating varnish. It offers high mechanical strength and is used in applications where resistance to puncture and abrasion is required.
Applications include:
Bus Bar Insulation: Ideal for wrapping bus bars due to its high dielectric strength.
Lead Sheath Protection: Provides a protective layer over lead cables and splices.
Mechanical Protection: Enhances durability in areas subject to wear and tear.
Compliance with electrical standards and regulations is crucial for safety and legality. Electrical tape must meet specific criteria to ensure it performs effectively under various conditions and does not compromise the integrity of electrical systems.
Quality electrical tapes carry approval labels from recognized testing agencies such as Underwriters Laboratories (UL), Canadian Standards Association (CSA), and International Electrotechnical Commission (IEC). These certifications indicate that the tape meets or exceeds rigorous safety and performance standards.
Key certification aspects include:
Dielectric Strength Testing: Ensures the tape provides adequate insulation to prevent electrical breakdown.
Flame Retardancy: Assesses the tape's ability to resist ignition and inhibit flame spread.
Temperature Rating: Verifies performance within specified temperature ranges without degradation.
Electrical tape is available in various colors, each signifying specific functions within electrical systems. Color coding facilitates the identification of wires' purpose, voltage level, or phase, which is essential for safe installation and maintenance.
| Tape Color | Usage (U.S.) | Usage (U.K.) | Usage (International) |
|---|---|---|---|
| Black | General Insulation | Low Voltage, Phase A | General Insulation |
| Red | Low Voltage, Phase B | Low Voltage, Phase A | Sheath, 415V 3-Phase |
| Blue | Low Voltage, Phase C | Low Voltage, Phase C | Neutral Wire |
| Green | Grounding/Earth | Earth Ground | Grounding/Earth |
| Yellow | High Voltage, Phase C | Low Voltage, Phase B | 110V Site Wiring |
| Brown | High Voltage, Phase A | Low Voltage, Phase A | Low Voltage, Phase A |
Adherence to color-coding standards enhances safety by reducing the risk of errors during electrical work. It is essential to consult local regulations, as color codes may vary by region.
Proper use of electrical tape is critical to maintaining the safety and functionality of electrical systems. Below, we outline the fundamental rules and best practices to follow when working with electrical tape.
Safety should always be the foremost priority when working with electricity. Consider the following guidelines:
Power Down: Always disconnect power to the circuit before beginning any work to prevent electric shock.
Use the Right Tape: Select electrical tape that is rated for the voltage and environmental conditions of the application.
Inspect Regularly: Examine tape for signs of degradation, such as cracking or peeling, and replace it as necessary.
Avoid Overreliance: Do not use electrical tape as a fix for damaged cords or severe insulation failures. Replace or properly repair such issues.
Applying electrical tape correctly ensures optimal insulation and longevity. Follow these steps:
Prepare the Surface: Ensure that wires are clean and dry. Remove any debris or existing damaged insulation.
Begin Wrapping: Start wrapping slightly below the exposed wire, moving upward toward the exposed section.
Overlap Strategically: Overlap each wrap by half the width of the tape to create a double layer of insulation without gaps.
Stretch Appropriately: Apply slight tension to the tape as you wrap to ensure it conforms tightly but avoid overstretching, which can compromise the tape's properties.
Secure the End: Finish by pressing down the end firmly to ensure it adheres and does not unravel.
For high-voltage or outdoor applications, consider using additional protective layers, such as a combination of rubber and vinyl tapes, to enhance insulation and environmental protection.
While electrical tape is versatile, other solutions may offer superior performance in certain scenarios. Understanding these alternatives allows for better decision-making in electrical projects.
Heat shrink tubing provides a durable, long-lasting insulation solution. It is used by slipping the tubing over a connection and applying heat, causing the tubing to contract and form a tight seal.
Advantages include:
Superior Protection: Offers excellent resistance to abrasion, moisture, and chemicals.
Neat Appearance: Provides a clean, professional look ideal for visible installations.
Customizable Sizes: Available in various diameters and shrink ratios to accommodate different wire sizes.
Wire connectors, also known as wire nuts, are essential for creating secure, code-compliant wire splices. They come in various sizes and types to accommodate different wire gauges and configurations.
Benefits include:
Secure Connections: Ensure a reliable electrical connection without exposed conductive material.
Easy Installation: Simply twist the connector onto the stripped wires for a quick and effective splice.
Enhanced Safety: Reduce the risk of shorts and arcing compared to tape-only splices.
For added protection, wire connectors can be used in conjunction with Electrical Tape to seal out moisture and provide additional mechanical strength.
Misunderstandings about the proper use of electrical tape can lead to unsafe conditions. Addressing these misconceptions is vital for ensuring safety and compliance with electrical codes.
A widespread error is substituting duct tape for electrical tape. Duct tape is not designed to insulate electrical wiring and can pose significant safety hazards.
Reasons to avoid duct tape in electrical applications:
Lack of Insulation: Duct tape does not possess the necessary dielectric properties to prevent electrical conduction.
Flammability: It is more susceptible to catching fire when exposed to heat from electrical currents.
Adhesive Degradation: The adhesive may deteriorate over time, leading to exposure of conductive materials.
Always use electrical tape specifically manufactured for insulating electrical connections to ensure safety and compliance with electrical codes.
Another misconception is that more layers of tape equate to better insulation. While adequate coverage is essential, excessively thick layers can create rigidity, making the connection more prone to damage. It may also prevent proper fitting in junction boxes or conduits, leading to code violations.
Follow manufacturer guidelines on the number of wraps and overlap to achieve optimal insulation without overdoing it.
In addition to standard insulating tasks, electrical tape finds use in specialized applications that require a deeper understanding of its properties.
For installations exposed to extreme temperatures, such as industrial machinery or aerospace components, specialized high-temperature tapes like polyimide or glass cloth tapes are used.
Considerations include:
Thermal Stability: Ability to withstand temperatures exceeding 200°C (392°F).
Flame Retardancy: Compliance with fire safety standards in critical applications.
Mechanical Strength: Resistance to degradation under thermal stress over time.
High-voltage applications demand tapes with exceptional dielectric strength and insulation properties. Rubber and self-amalgamating tapes are commonly employed in these scenarios.
Key factors:
Dielectric Strength: Capability to insulate against high electrical stresses.
Moisture Resistance: Protection against tracking and partial discharges.
Layer Compatibility: Often used in combination with semi-conductive tapes for stress control.
Electrical tape plays a pivotal role in the safety and functionality of electrical systems. Understanding its types, appropriate applications, and the rules governing its use is essential for both professionals and hobbyists. By adhering to best practices and selecting the right Electrical Tape for each task, we ensure that electrical installations and repairs are performed safely, efficiently, and in compliance with regulatory standards. As technology evolves and electrical systems become more complex, staying informed about the latest developments in insulating materials and methods remains a critical aspect of electrical work.
1.Is electrical tape waterproof?
Electrical tape is generally moisture-resistant but not entirely waterproof. While vinyl and rubber tapes provide some protection against moisture, they are not suitable for applications where the tape will be submerged or exposed to significant amounts of water over time. For environments with high moisture or potential submersion, consider using mastic tape or heat shrink tubing for a more reliable seal.
2.Can I use electrical tape to repair damaged wires?
Electrical tape can be used for minor repairs on damaged insulation where the conductor is not exposed. However, it should not be used to repair severely damaged wires or as a permanent fix. For significant damage, it's important to replace the wire or use proper splicing methods with wire connectors and appropriate insulation to ensure safety and reliability.
3.Does electrical tape conduct electricity?
No, electrical tape is designed to be an insulator. It does not conduct electricity when applied correctly, helping to prevent electrical currents from passing to unintended areas. However, it's crucial to use tape that is appropriate for the voltage level of the application and to apply it properly to maintain its insulating properties.
4.What is the temperature rating for electrical tape?
The temperature rating for electrical tape varies depending on the material. Standard vinyl electrical tape is typically rated up to 80°C (176°F). High-temperature tapes, such as polyimide or glass cloth tapes, can withstand temperatures exceeding 200°C (392°F). Always consult the manufacturer's specifications to ensure the tape is suitable for your application's temperature requirements.
5.Can I use electrical tape outdoors?
Yes, but it's essential to select electrical tape suitable for outdoor use. Tapes designed for outdoor applications are typically UV-resistant and can withstand temperature fluctuations, moisture, and other environmental factors. Using a high-quality vinyl or rubber tape with weather-resistant properties is recommended for outdoor installations.
6.Is it safe to use electrical tape on frayed cords?
No, using electrical tape on frayed or damaged cords is not safe. Frayed cords pose a significant safety risk, and covering them with tape does not address the underlying issue. The appropriate action is to replace the cord entirely to prevent potential electrical shocks or fires.
7.Why are there different colors of electrical tape?
Different colors of electrical tape are used for phase identification, voltage level indication, and to signify the purpose of wires within electrical systems. This color-coding system helps electricians and technicians quickly identify wires during installation, maintenance, and repair, reducing the risk of errors and enhancing safety. It's important to follow local color-coding standards, as they may vary by region.
